Square edge LED

SHGA series

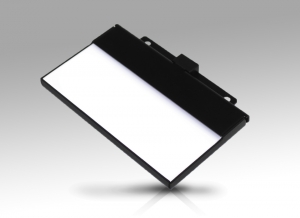

This LED series is Flat LED with uniformity, thin, power saving & low heat generation.

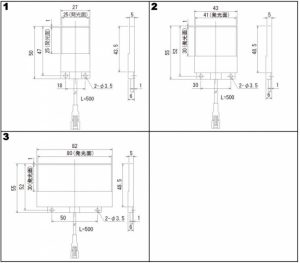

Model	Color	Power consumption(W)	Input voltage (V)	SAG (* Note)	Drawing
SHGA-25-25R	Red	0.6	DC12V	FF	1
SHGA-25-25W	White	0.9	DC12V	9D	1
SHGA-25-25B	Blue	0.5	DC12V	A4	1
SHGA-30-41R	Red	1.2	DC12V	F9	2
SHGA-30-41W	White	1.7	DC12V	BD	2
SHGA-30-41B	Blue	0.9	DC12V	9D	2
SHGA-30-80	Red	2.4	DC12V	F8	3
SHGA-30-80	White	2.6	DC12V	98	3
SHGA-30-80	Blue	1.7	DC12V	9D	3

*NOTE:
SAG value is the maximum voltage set value under the overdrive power supply.
