Near Infrared LED (850nm & 950nm)
NIR LED light for 850nm & 950nm are added in our lineup.
Other wavelength such as 780nm/810nm/890nm/940nm can be supplied.

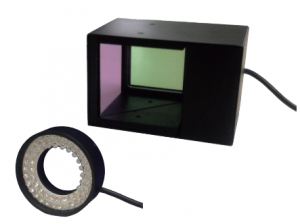

We can offer many kinds of this series such as ring type, bar type, square type, flat type, coaxial spot type etc.
| Model | Color | Power consumption(W) | Input voltage (V) | SAG (* Note) | Drawing |
| SRM-80IR-850 | IR(850nm) | 7 | DC12V | BC | 1 |
| SRD-80IR-950 | IR(950nm) | 7 | DC12V | DA | 1 |
| SRD-50-28IR-850 | IR(850nm) | 2.2 | DC12V | FF | 2 |
| SBR-90-50IR-850 | IR(850nm) | 4.4 | DC12V | FF | 3 |
| SBR-50-15IR-850 | IR(850nm) | 1.5 | DC12V | FF | 4 |
| SBR-72-24IR-850 | IR(850nm) | 2.8 | DC12V | FF | 5 |
| SBR-132-15IR-850 | IR(850nm) | 3.9 | DC12V | FF | 6 |
| SMD-40IR-850 | IR(850nm) | 2 | DC12V | FF | 7 |
| SHM-25-30IR-850 | IR(850nm) | 2 | DC12V | E3 | 8 |
| SHM-66-60IR-850 | IR(850nm) | 7.5 | DC12V | FF | 9 |
| SHM-108-114IR-850 | IR(850nm) | 14.7 | DC12V | FF | 10 |
| SHM-150-142IR-850 | IR(850nm) | 24 | DC12V | E5 | 11 |
| SHM-214-226IR -850 -24V | IR(850nm) | 24 | DC24V | 12 |
*NOTE: SAG value is the maximum voltage set value under the overdrive power supply.
