Multi-position ring LED (Divided into half size)

SRM-CT series

This LED series is suitable for curved object such as cylindrical shape.

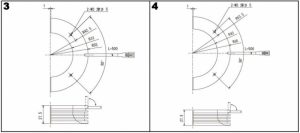

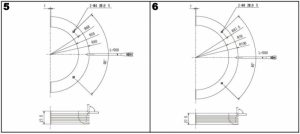

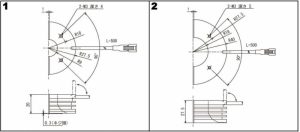

Model	Color	Power consumption(W)	Input voltage (V)	SAG (* Note)	Drawing
SRM-CT55R	Red	2.8	DC12V	B6	1
SRM-CT55W	White	3.3	DC12V	A3	1
SRM-CT55B	Blue	3.3	DC12V	8C	1
SRM-CT80R	Red	6	DC12V	8C	2
SRM-CT80W	White	6.6	DC12V	8E	2
SRM-CT80B	Blue	6.6	DC12V	78	2
SRM-CT110R	Red	8	DC12V	92	3
SRM-CT110W	White	9.3	DC12V	88	3
SRM-CT110B	Blue	9.3	DC12V	7A	3
SRM-CT130R	Red	10	DC12V	8E	4
SRM-CT130W	White	11.5	DC12V	87	4
SRM-CT130B	Blue	11.5	DC12V	7B	4
SRM-CT160R	Red	12.5	DC12V	91	5
SRM-CT160W	White	14	DC12V	8D	5
SRM-CT160B	Blue	14	DC12V	7A	5
SRM-CT200R	Red	16	DC12V	99	6
SRM-CT200W	White	17.5	DC12V	96	6
SRM-CT200B	Blue	17.5	DC12V	82	6

*NOTE: SAG value is the maximum voltage set value under the overdrive power supply.

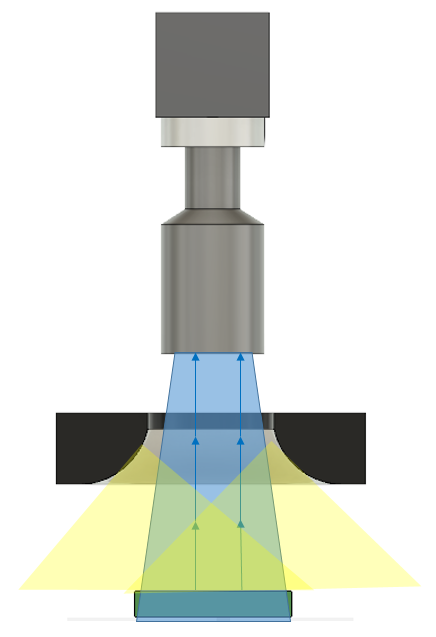

Lighting structure

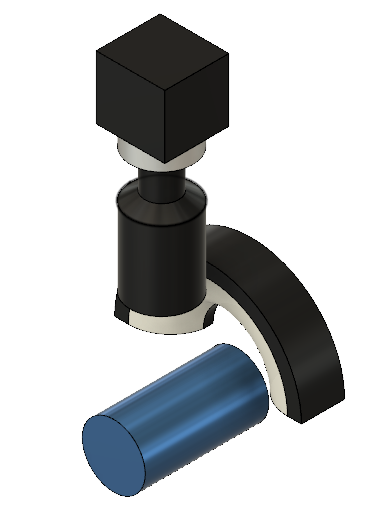

Example of use
