Multi-position ring LED (Divided into 8 regions)

SRM-8ch series

This LED series is multi-channel style that allows irradiation from eight divisions and  suitable for visual inspection of uneven objects.

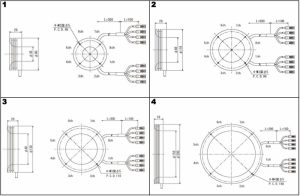

Model	Color	Power consumption(W)	Input voltage (V)	SAG (* Note)	Drawing
SRM-80RH-8ch	Red	7	DC12V	A9	1
SRM-80W-8ch	White	8	DC12V	CB	1
SRM-80B-8ch	Blue	8	DC12V	95	1
SRM-100RH-8ch	Red	12	DC12V	70	2
SRM-100W-8ch	White	13.5	DC12V	91	2
SRM-100B-8ch	Blue	13.5	DC12V	6F	2
SRM-130RH-8ch	Red	14	DC12V	A9	3
SRM-130W-8ch	White	16	DC12V	D8	3
SRM-130B-8ch	Blue	16	DC12V	9E	3
SRM-200RH-8ch	Red	24	DC12V	71	4
SRM-200W-8ch	White	24	DC12V	92	4
SRM-200B-8ch	Blue	24	DC12V	DA	4

*NOTE: SAG value is the maximum voltage set value under the overdrive power supply
