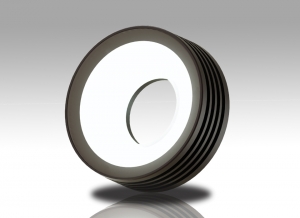

Multi-position ring LED

SRM series

This LED series can be used for a wide range of applications by changing the irradiation distance.

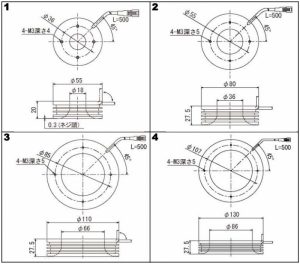

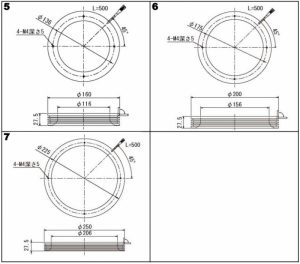

Model	Color	Power consumption(W)	Input voltage (V)	SAG (* Note)	Drawing
SRM-55R	Red	5	DC12V	D3	1
SRM-55W	White	6	DC12V	B8	1
SRM-55B	Blue	5.5	DC12V	A6	1
SRM-80R	Red	10	DC12V	AC	2
SRM-80W	White	11	DC12V	A0	2
SRM-80B	Blue	15	DC12V	AF	2
SRM-110R	Red	17	DC12V	A4	3
SRM-110W	White	15	DC12V	92	3
SRM-110B	Blue	16	DC12V	9E	3
SRM-130R	Red	18	DC12V	71	4
SRM-130W	White	20	DC12V	92	4
SRM-130B	Blue	18	DC12V	DA	4
SRM-160R	Red	23	DC12V	AC	5
SRM-160W	White	25	DC12V	A2	5
SRM-160B	Blue	23	DC12V	91	5
SRM-200R	Red	29	DC12V	DA	6
SRM-200W	White	30	DC12V	91	6
SRM-200B	Blue	29	DC12V	A6	6
SRM-250R-24V	Red	40	DC24V		7
SRM-250W-24V	White	45	DC24V		7
SRM-250B-24V	Blue	40	DC24V		7

*NOTE: SAG value is the maximum voltage set value under the overdrive power supply.
