Large Flat Luminescent LED with hole
SFPA-D series
This flat luminescent LED series has two types of hole (φ35 & φ55) for caputing image with camera.

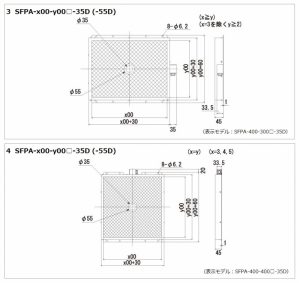

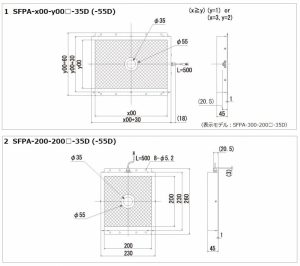

| Model | Color | Power consumption(W) | Input voltage (V) | Hole size(mm) | Drawing |
| SFPA-100-100R-35D | Red | 5 | DC24V | φ35 | 1 |
| SFPA-100-100W-35D | White | 5 | DC24V | φ35 | 1 |
| SFPA-100-100B-35D | Blue | 5 | DC24V | φ35 | 1 |
| SFPA-100-100R-55D | Red | 5 | DC24V | φ55 | 1 |
| SFPA-100-100W-55D | White | 5 | DC24V | φ55 | 1 |
| SFPA-100-100B-55D | Blue | 5 | DC24V | φ55 | 1 |
| SFPA-200-100R-35D | Red | 15 | DC24V | φ35 | 1 |
| SFPA-200-100W-35D | White | 15 | DC24V | φ35 | 1 |
| SFPA-200-100B-35D | Blue | 15 | DC24V | φ35 | 1 |
| SFPA-200-100R-55D | Red | 15 | DC24V | φ55 | 1 |
| SFPA-200-100W-55D | White | 15 | DC24V | φ55 | 1 |
| SFPA-200-100B-55D | Blue | 15 | DC24V | φ55 | 1 |
| SFPA-200-200R-35D | Red | 35 | DC24V | φ35 | 2 |
| SFPA-200-200W-35D | White | 35 | DC24V | φ35 | 2 |
| SFPA-200-200B-35D | Blue | 35 | DC24V | φ35 | 2 |
| SFPA-200-200R-55D | Red | 25 | DC24V | φ55 | 2 |
| SFPA-200-200W-55D | White | 25 | DC24V | φ55 | 2 |
| SFPA-200-200B-55D | Blue | 25 | DC24V | φ55 | 2 |
| SFPA-300-100R-35D | Red | 25 | DC24V | φ35 | 3 |
| SFPA-300-100W-35D | White | 25 | DC24V | φ35 | 3 |
| SFPA-300-100B-35D | Blue | 25 | DC24V | φ35 | 3 |
| SFPA-300-100R-55D | Red | 25 | DC24V | φ55 | 3 |
| SFPA-300-100W-55D | White | 25 | DC24V | φ55 | 3 |
| SFPA-300-100B-55D | Blue | 25 | DC24V | φ55 | 3 |
| SFPA-300-200R-35D | Red | 55 | DC24V | φ35 | 3 |
| SFPA-300-200W-35D | White | 55 | DC24V | φ35 | 3 |
| SFPA-300-200B-35D | Blue | 55 | DC24V | φ35 | 3 |
| SFPA-300-200R-55D | Red | 55 | DC24V | φ55 | 3 |
| SFPA-300-200W-55D | White | 55 | DC24V | φ55 | 3 |
| SFPA-300-200B-55D | Blue | 55 | DC24V | φ55 | 3 |
| SFPA-300-300R-35D | Red | 85 | DC24V | φ35 | 4 |
| SFPA-300-300W-35D | White | 85 | DC24V | φ35 | 4 |
| SFPA-300-300B-35D | Blue | 85 | DC24V | φ35 | 4 |
| SFPA-300-300R-55D | Red | 85 | DC24V | φ55 | 4 |
| SFPA-300-300W-55D | White | 85 | DC24V | φ55 | 4 |
| SFPA-300-300B-55D | Blue | 85 | DC24V | φ55 | 4 |
| SFPA-400-100R-35D | Red | 35 | DC24V | φ35 | 1 |
| SFPA-400-100W-35D | White | 35 | DC24V | φ35 | 1 |
| SFPA-400-100B-35D | Blue | 35 | DC24V | φ35 | 1 |
| SFPA-400-100R-55D | Red | 35 | DC24V | φ55 | 1 |
| SFPA-400-100W-55D | White | 35 | DC24V | φ55 | 1 |
| SFPA-400-100B-55D | Blue | 35 | DC24V | φ55 | 1 |
| SFPA-400-200R-35D | Red | 75 | DC24V | φ35 | 3 |
| SFPA-400-200W-35D | White | 75 | DC24V | φ35 | 3 |
| SFPA-400-200B-35D | Blue | 75 | DC24V | φ35 | 3 |
| SFPA-400-200R-55D | Red | 75 | DC24V | φ55 | 3 |
| SFPA-400-200W-55D | White | 75 | DC24V | φ55 | 3 |
| SFPA-400-200B-55D | Blue | 75 | DC24V | φ55 | 3 |
| SFPA-400-300R-35D | Red | 115 | DC24V | φ35 | 3 |
| SFPA-400-300W-35D | White | 115 | DC24V | φ35 | 3 |
| SFPA-400-300B-35D | Blue | 115 | DC24V | φ35 | 3 |
| SFPA-400-300R-55D | Red | 115 | DC24V | φ55 | 3 |
| SFPA-400-300W-55D | White | 115 | DC24V | φ55 | 3 |
| SFPA-400-300B-55D | Blue | 115 | DC24V | φ55 | 3 |
| SFPA-400-400R-35D | Red | 155 | DC24V | φ35 | 4 |
| SFPA-400-400W-35D | White | 155 | DC24V | φ35 | 4 |
| SFPA-400-400B-35D | Blue | 155 | DC24V | φ35 | 4 |
| SFPA-400-400R-55D | Red | 155 | DC24V | φ55 | 4 |
| SFPA-400-400AW-55D | White | 155 | DC24V | φ55 | 4 |
| SFPA-400-400B-55D | Blue | 155 | DC24V | φ55 | 4 |
| SFPA-500-100R -35D | Red | 45 | DC24V | φ35 | 1 |
| SFPA-500-100W -35D | White | 45 | DC24V | φ35 | 1 |
| SFPA-500-100B -35D | Blue | 45 | DC24V | φ35 | 1 |
| SFPA-500-100R -55D | Red | 45 | DC24V | φ55 | 1 |
| SFPA-500-100W -55D | White | 45 | DC24V | φ55 | 1 |
| SFPA-500-100B -55D | Blue | 45 | DC24V | φ55 | 1 |
| SFPA-500-200R -35D | Red | 95 | DC24V | φ35 | 3 |
| SFPA-500-200W -35D | White | 95 | DC24V | φ35 | 3 |
| SFPA-500-200B -35D | Blue | 95 | DC24V | φ35 | 3 |
| SFPA-500-200R -55D | Red | 95 | DC24V | φ55 | 3 |
| SFPA-500-200W -55D | White | 95 | DC24V | φ55 | 3 |
| SFPA-500-200B -55D | Blue | 95 | DC24V | φ55 | 3 |
| SFPA-500-300R -35D | Red | 145 | DC24V | φ35 | 3 |
| SFPA-500-300W -35D | White | 145 | DC24V | φ35 | 3 |
| SFPA-500-300B -35D | Blue | 145 | DC24V | φ35 | 3 |
| SFPA-500-300R -55D | Red | 145 | DC24V | φ55 | 3 |
| SFPA-500-300W -55D | White | 145 | DC24V | φ55 | 3 |
| SFPA-500-300B -55D | Blue | 145 | DC24V | φ55 | 3 |
| SFPA-500-400R -35D | Red | 195 | DC24V | φ35 | 3 |
| SFPA-500-400W -35D | White | 195 | DC24V | φ35 | 3 |
| SFPA-500-400B -35D | Blue | 195 | DC24V | φ35 | 3 |
| SFPA-500-400R -55D | Red | 195 | DC24V | φ55 | 3 |
| SFPA-500-400W -55D | White | 195 | DC24V | φ55 | 3 |
| SFPA-500-400B -55D | Blue | 195 | DC24V | φ55 | 3 |
