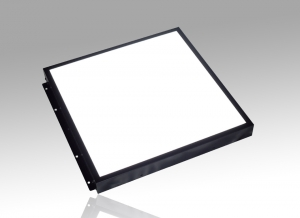

Large Flat Luminescent LED
SFPA series
This LED series can be manufactured in multiples of 100mm and suitable for inspecting
large objects.
| Model | Color | Power consumption(W) | Input voltage (V) | Drawing |
| SFPA-200-100R | Red | 20 | DC24V | 1 |
| SFPA-200-100W | White | 20 | DC24V | 1 |
| SFPA-200-100B | Blue | 20 | DC24V | 1 |
| SFPA-300-100R | Red | 30 | DC24V | 2 |
| SFPA-300-100W | White | 30 | DC24V | 2 |
| SFPA-300-100B | Blue | 30 | DC24V | 2 |
| SFPA-400-100R | Red | 40 | DC24V | 3 |
| SFPA-400-100W | White | 40 | DC24V | 3 |
| SFPA-400-100B | Blue | 40 | DC24V | 3 |
| SFPA-200-200R | Red | 40 | DC24V | 4 |
| SFPA-200-200W | White | 40 | DC24V | 4 |
| SFPA-200-200B | Blue | 40 | DC24V | 4 |
| SFPA-300-200R | Red | 60 | DC24V | 5 |
| SFPA-300-200W | White | 60 | DC24V | 5 |
| SFPA-300-200B | Blue | 60 | DC24V | 5 |
| SFPA-400-200R | Red | 80 | DC24V | 6 |
| SFPA-400-200W | White | 80 | DC24V | 6 |
| SFPA-400-200B | Blue | 80 | DC24V | 6 |
| SFPA-300-300R | Red | 90 | DC24V | 7 |
| SFPA-300-300W | White | 90 | DC24V | 7 |
| SFPA-300-300B | Blue | 90 | DC24V | 7 |
| SFPA-400-300R | Red | 120 | DC24V | 8 |
| SFPA-400-300W | White | 120 | DC24V | 8 |
| SFPA-400-300B | Blue | 120 | DC24V | 8 |
| SFPA-400-400R | Red | 160 | DC24V | 9 |
| SFPA-400-400W | White | 160 | DC24V | 9 |
| SFPA-400-400B | Blue | 160 | DC24V | 9 |
