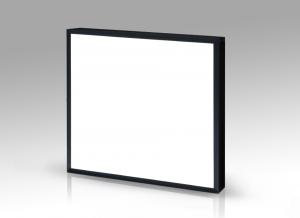

Flat Luminescent LED with Narrow-angled light distribution

SHMV series

This LED series is effective for detecting the edges of cylindersand glossy parts by distributing
narrow-angle light.
Compared to the diffusion type, the output is about 1.6 times higher, and it can be used with high-speed shutters.

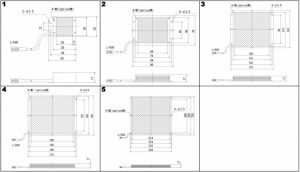

Model	Color	Power consumption(W)	Input voltage (V)	SAG (* Note)	Drawing
SHMV-25-30R	Red	2	DC12V	9A	1
SHMV-25-30W	White	2	DC12V	F9	1
SHMV-25-30B	Blue	2	DC12V	98	1
SHMV-25-30IR850	IR(850nm)	2	DC12V	E3	1
SHMV-25-30IR950	IR(950nm)	2	DC12V	E3	1
SHMV-66-60R	Red	7.5	DC12V	F5	2
SHMV-66-60W	White	7.5	DC12V	FF	2
SHMV-66-60B	Blue	7.5	DC12V	B3	2
SHMV-66-60IR850	IR(850nm)	7.5	DC12V	FF	2
SHMV-66-60IR950	IR(950nm)	7.5	DC12V	FF	2
SHMV-108-114R	Red	14.7	DC12V	FF	3
SHMV-108-114W	White	14.7	DC12V	FF	3
SHMV-108-114B	Blue	14.7	DC12V	FF	3
SHMV-108-114IR850	IR(850nm)	14.7	DC12V	FF	3
SHMV-108-114IR950	IR(950nm)	14.7	DC12V	FF	3
SHMV-150-42R	Red	24	DC12V	FF	4
SHMV-150-42W	White	24	DC12V	CF	4
SHMV-150-42B	Blue	24	DC12V	D0	4
SHMV-150-42IR850	IR(850nm)	24	DC12V	E5	4
SHMV-150-42IR950	IR(950nm)	24	DC12V	EF	4
SHMV-214-226R – 24V	Red	47	DC24V		5
SHMV-214-226W- 24V	White	47	DC24V		5
SHMV-214-226B- 24V	Blue	47	DC24V		5
SHMV-214-226IR850-24V	IR(850nm)	47	DC24V		5
SHMV-214-226IR950-24V	IR(950nm)	47	DC24V		5

*NOTE:
SAG value is the maximum voltage set value under the overdrive power supply.
